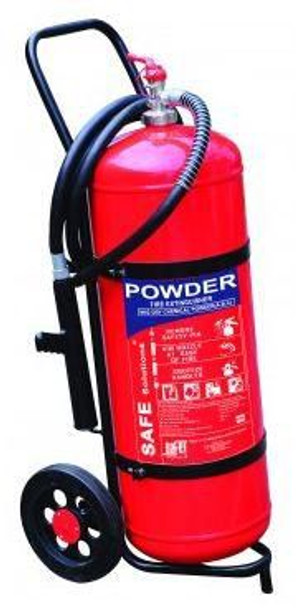

DCP 25kg Fire Extinguisher

Tikweld Welding Supplies and Services is the distributor of quality fire fighting equipment and accessories in Nigeria. Our 25KG DCP (Dry Chemical Powder) Fire Extinguisher is a user friendly equipment produced to meet the safety standards of our environment from fire hazards.  At TIKWELD we have fire extinguishers stocked in different sizes in high quality to meet your needs.

A reliable equipment built with solid metal and epoxy powder covering paint to stop corrosion. 25KG DCP Fire Extinguisher is available and are provided with sections to safely secure fire extinguisher. 25KG DCP Fire Extinguisher is manufactured to protect offices, laboratories, homes and to prevent kitchen dangers.

CARE FOR EXTINGUISHER

Certain caution and maintenance steps should be taken for optimal performance of fire extinguisher;

• Inspection of your extinguisher should be done regularly.
• Recharge all extinguishers immediately after use regardless of how much they were used.
• Ensure the extinguisher is easily accessed,  no other objects could interfere with access in case of an emergency.
• The pressure is at the recommended level. On extinguishers equipped with a gauge (such as that shown on the right), the needle should be in the green zone - not too high and not too low.
• Verify that the pull pin is properly secured within the handle and held in place by the tamper seal.
• The nozzle or other parts are not hindered in any way.
• The pin and tamper seal (if it has one) are intact.
• Ensure there are no dents, leaks, rust, chemical deposits and/or other signs of abuse/wear. Wipe off any corrosive chemicals, oil, gunk etc. that may have been deposited on the extinguisher

Specification

• FIRE RATING D
• EXTINGUISHING AGENT EPD 0356 powder
• PROPELLANT Dehumidified air or N2, 14 Bar at 20°C
• TEMPERATURE RANGE -30°C +60°C
• NOMINAL CHARGE 25Kg
• FULL WEIGHT ~ 38.5Kg
• DIMENSIONS  Height 795 mm Width 250 mm
• DISCHARGE TIME 25sec.
• MAX VALVE TIGHTENING Between 50 and 60 Nm
• CYLINDER PRESSURE TEST PT 30 bar
• CYLINDER VOLUME 30 L.
• SAFETY VALVE Set 24 +/- 2 bar
• CYLINDER MATERIAL Alloy steel
• EXTERNAL/INTERNAL TREATMENT Sandblast and epoxy powder painting, Red Ral 3000 colour
