How to Set Up and Use an Arc Welding Machine Like a Pro

Introduction

Arc welding is one of the most widely used welding techniques in industrial fabrication, metal repair, and home DIY projects. Whether you're an experienced welder or just starting, knowing how to set up and operate an arc welding machine properly is essential for safety, efficiency, and high-quality welds.

A properly set-up arc welding machine ensures:

Stronger and cleaner welds
Improved efficiency and reduced electrode wastage
Minimized spatter and welding defects
Enhanced safety during operations

In this guide, we’ll walk you through step-by-step instructions on setting up and using an arc welding machine like a pro.

Key Takeaway

Safety First – Always wear proper safety gear, including a welding helmet, gloves, and fire-resistant clothing, and ensure your workspace is well-ventilated.
Proper Machine Setup – Select the right power source, set the correct amperage, and securely connect the ground clamp and electrode holder before welding.
Choosing the Right Electrode – Match the electrode type to the material being welded; common choices include E6013 for general welding and E7018 for structural applications.

Understanding Arc Welding Machines

What is an Arc Welding Machine?

Arc welding machines generate an electric arc between an electrode and the metal workpiece, creating intense heat that melts and fuses metals together.

Key components of an arc welding machine:

Power source – Supplies electricity for the arc.
Electrode holder – Holds the electrode and conducts current.
Ground clamp – Connects the workpiece to complete the circuit.
Control panel – Allows adjustment of voltage, amperage, and polarity.

Types of Arc Welding Machines

Different welding machines are suited for specific applications. Here are the four most common:

Stick Welding (SMAW): Best for structural welding, industrial fabrication, and outdoor welding.
MIG Welding (GMAW): Produces clean welds and is ideal for sheet metal and auto body repairs.
TIG Welding (GTAW): Provides precision welding for materials like aluminum and stainless steel.
Flux-Cored Arc Welding (FCAW): Works well for high-speed welding and outdoor applications.

Tip: Stick welders (SMAW) are the most commonly used arc welding machines due to their versatility and ability to weld thick materials.

Step-by-Step Guide: How to Set Up an Arc Welding Machine

Safety Precautions Before Starting

Before using an arc welder, it is crucial to prioritize safety.

Wear Personal Protective Equipment (PPE)

Auto-darkening welding helmet – Protects eyes from arc flashes.
Fire-resistant gloves and clothing – Prevents burns from sparks.
Steel-toe boots – Protects feet from falling objects.

Ensure a Safe Work Environment

Keep the work area well-ventilated to reduce exposure to welding fumes.
Remove any flammable materials from the surroundings.
Have a fire extinguisher nearby in case of emergencies.

Tip: Never weld in a damp environment to avoid electric shock hazards.

Gathering Your Welding Equipment

Before setting up your welding machine, ensure you have:

Arc welding machine (e.g., Kaierda ZX7-630S or ZX7-200N)
Electrodes (Stick welding) or filler wire (MIG/TIG welding)
Ground clamp and welding cables
Welding table or workbench
Protective gear and safety glasses

Tip: Using the correct electrode for your metal type improves welding efficiency and results.

Connecting the Welding Machine

Setting up your arc welder properly ensures consistent and stable welds. Follow these steps:

Plug the welding machine into a suitable power source (220V for home use, 380V for industrial applications).
Attach the ground clamp securely to the workpiece or welding table.
Connect the electrode holder to the welding cable.
Insert the correct electrode into the holder.

Tip: Ensure all connections are tight to avoid power fluctuations and weak welds.

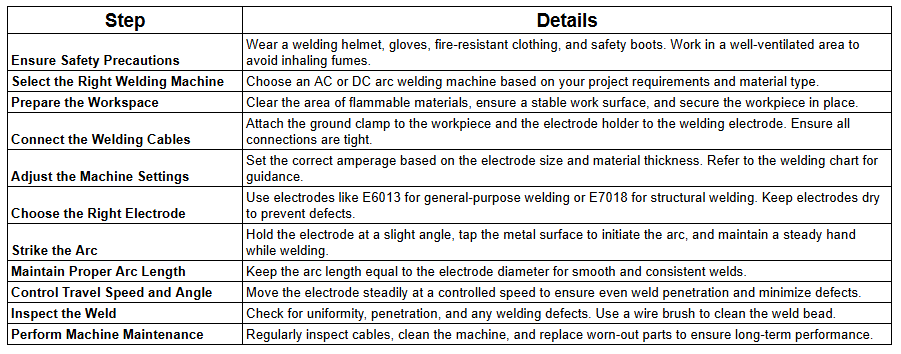

Essential Steps for Setting Up and Using an Arc Welding Machine Like a Pro

Adjusting Welding Settings for Optimal Performance

Setting the Correct Amperage

The amperage setting depends on the thickness of the metal and the type of electrode used.

50A–150A: Ideal for thin metals, sheet metal work, and light repairs.
150A–300A: Suitable for mild steel, automotive repairs, and general fabrication.
300A–630A: Best for heavy-duty industrial welding and thick metal applications.

Example: The Kaierda ZX7-315 arc welding machine provides a wide amperage range (50A–630A), making it suitable for various welding tasks.

Choosing the Right Electrode

Selecting the correct electrode improves weld strength, penetration, and finish quality.

E6013: Best for general-purpose welding and smooth finishes.
E7018: Ideal for structural welding and industrial applications.
E6011: Great for penetrating rusted or painted surfaces.

Tip: Use a dry electrode to prevent moisture contamination, which can cause porous welds.

Adjusting Polarity (DCEN vs. DCEP vs. AC)

DCEN (Direct Current Electrode Negative): Offers deeper penetration, best for thicker metals.
DCEP (Direct Current Electrode Positive): Produces a wider weld bead, ideal for general welding.
AC (Alternating Current): Used for materials prone to arc blow and high-frequency TIG welding.

Tip:Always check the manufacturer’s recommendations for the correct polarity settings.

Starting the Welding Process

Striking an Arc (For Stick Welding)

To create a steady arc, follow these steps:

Hold the electrode at a 15–20° angle to the workpiece.
Drag or tap the electrode against the metal to strike an arc.
Maintain a consistent arc length (2–3mm) for a steady weld.

Tip: If the electrode sticks, release it quickly and adjust the amperage settings.

Maintaining a Steady Arc and Travel Speed

Keep a consistent arc length—too short can cause weld defects, too long can lead to excessive spatter.
Move at a steady pace—too fast results in weak welds, too slow overheats the metal.
Adjust the welding angle (45°–90°) based on the joint type (butt, lap, or T-joint).

Tip: Watching the weld puddle rather than the arc helps ensure even bead formation.

Controlling the Weld Bead

Short arc length = stronger penetration and better control.
Long arc length = increased spatter and weaker welds.
Weaving technique – Best for thicker metals, ensuring even fusion across the joint.

Tip: For deep penetration, use a steady dragging motion while welding.

Common Arc Welding Mistakes to Avoid

Electrode Sticking to the Workpiece

Solution: Increase the amperage setting slightly or use the hot start feature (if available).

Excessive Spatter and Inconsistent Weld Beads

Solution: Maintain a steady arc length and proper electrode angle.

Poor Weld Penetration

Solution: Increase amperage and move at a slower travel speed for deeper fusion.

Overheating the Workpiece

Solution: Use intermittent welding techniques and allow time for cooling between passes.

Tip: Always inspect welds for cracks, porosity, and incomplete fusion.

Post-Weld Cleanup and Machine Maintenance

Cleaning the Welded Surface

After welding, it's essential to clean the weld area to ensure a smooth, strong, and durable finish.

Remove slag using a chipping hammer or wire brush (for stick welding).
Use a grinder to smooth out rough welds (if necessary).
Inspect the weld for defects such as cracks, porosity, or incomplete fusion.

Tip: If a weld appears weak or porous, grind it down and re-weld with proper settings and techniques.

Maintaining Your Arc Welding Machine

To extend the lifespan of your welding machine and ensure reliable performance, follow these maintenance tips:

Check cables and connectors for wear, frays, or loose connections.
Clean the electrode holder and ground clamp to maintain conductivity.
Keep ventilation slots free from dust and debris to prevent overheating.
Store electrodes properly in a dry place to avoid moisture contamination.

Tip: Always turn off and unplug the machine before performing maintenance.

Frequently Asked Questions

1. What safety precautions should I take before using an arc welding machine?

Always wear proper safety gear, including a welding helmet, gloves, fire-resistant clothing, and safety boots. Ensure your work area is well-ventilated and free from flammable materials.

2. How do I choose the right electrode for my welding project?

The choice of electrode depends on the type of metal you’re welding and the desired weld quality. Common electrodes include E6013 for general welding and E7018 for structural applications.

3. What is the ideal power setting for arc welding?

Power settings depend on material thickness and electrode type. Generally, thicker metals require higher amperage, while thinner materials need lower settings to prevent burn-through.

4. How can I prevent the electrode from sticking to the metal?

Ensure the amperage is set correctly for the electrode type, maintain a steady hand, and use a slight angle while welding. Anti-stick features in modern welding machines can also help.

5. What maintenance is required for an arc welding machine?

Regularly check the cables, electrode holder, and ground clamp for wear and tear. Keep the machine clean, and store it in a dry place to prevent rust and damage.

Beginner's Guide: Basic Welding Techniques and How to Master Them

The Evolution of Welding Technology: Past, Present, and Future

Where to buy welding equipment in Nigeria Near me

Conclusion

Mastering arc welding requires the right equipment, safety measures, and proper technique. By understanding machine setup, electrode selection, and welding best practices, you can achieve high-quality welds efficiently. Whether you're a beginner or a seasoned welder, following these guidelines will improve your welding precision and safety.
