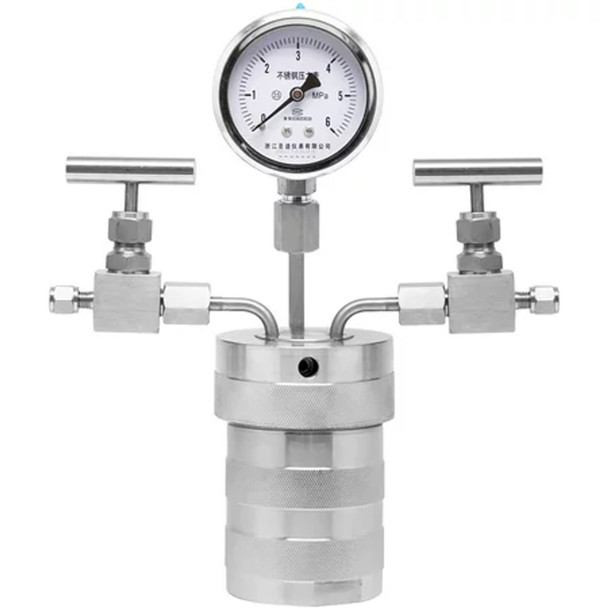

Hellog Thermal Reactor with gauge

Hydrothermal reactor with Gauge

Tikweld welding Supplies and services is a distributor and supplier of Hellog tools in Nigeria. The Hydrothermal Autoclave reactor or Hydrothermal bomb is a device used to carry hydrothermal reaction at high pressure and high temperatures with strict supervision. The reactors are mainly made up of two parts; outer high-quality stainless steel Shell made of high-quality nonmagnetic 304 stainless steel and the maximum operating temperature is 280-degree Celsius (536 Fahrenheit).

and PTFE (Poly Tetra Fluoroethylene: Highly chemically resistant to corrosion, Acid and Alkali, and various organic solvents  and the reaction is carried out at maximum 240-degree Celsius (428 Fahrenheit)

This product extensively used in the scientific laboratory, research and development labs, institutional organizations, quality analysis section in industries for the following processes

• The dissolution of organic chemicals, refractory material, heavy metals, etc.
• Crystallization process
• Material Digester/Digestion
• Hydrothermal Precipitation
• Hydrothermal Oxidation
• Catalyst synthesis
• Hydrothermal decomposition
• Polymerization reaction
• For cultured crystal growth
• Synthesizing nanoparticles
• Chemical synthesis

Precautions

• The autoclave shouldn't be operated without water. The utilization of hard water should be avoided in the unit.
• Contamination can be prevented by properly cleaning the Teflon reaction vessel before usage.
• There should be no extra weight on the autoclave.
• The autoclave caps should be properly closed and when there is a need of opening them, a tightening rod can help in loosening the primary SS cap so no one should open it with force.
• After using it for a day, dry and clean the hydrothermal reactor unit.
• Utilize autoclave for its specific usages only.
• Make sure that there is the correct operation of the pressure gauge.
• Ensure the good condition and shape of both the gaskets and the stainless steel.
• Clean the base unit’s surface where the gasket rests.
• The gasket shouldn't be properly lubricated for reuse.

Specification

Volume  25ml   50ml  100ml  150ml  200ml  300ml  500ml

Body material: SS304 ; Liner: PTFE

Design pressure  Standard 30 bar

Temperature    Standard temperatures 230℃, heating and cooling speed: ≤ 5℃/ min

Cap/Max Diameter (mm)  54   65  75  97  107

Total Height (mm)  120  140  155  190  210

Total Weight (kg)  1  1.65  2.3  4.8  6.1  6.7  10.6
