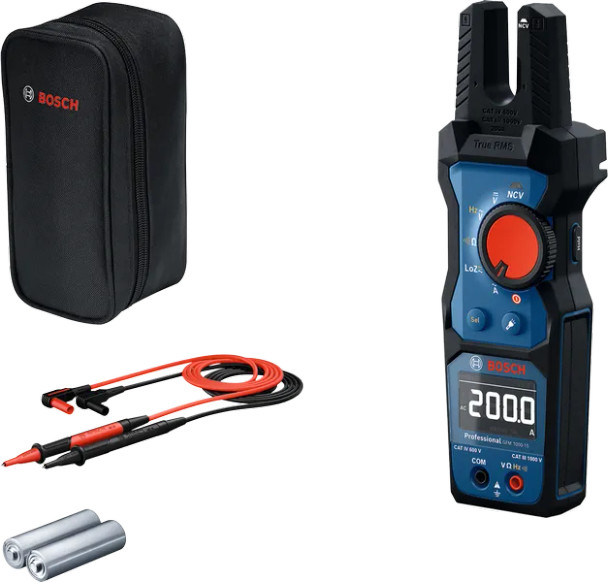

Bosch GFM 1000-15 Professional Fork Meter, Electrical Tester, 200A AC, IP54
Production Description
Tikweld Welding Supplies and Services is the distributor of Bosch Power tools in Nigeria. This Bosch GFM 1000-15 Professional Fork Meter, Electrical Tester, 200A AC, IP54 is a professional-grade fork meter designed for quick, efficient, accurate, and safe current and voltage testing. With its open clamp design, you can measure current up to 200 A AC without test leads to save time and effort. This all-in-one tool measures current AC, voltage AC/DC up to 1000 V, continuity, resistance, and has LoZ V AC/DC integrated. With IP54 protection, its robust build ensures resistance to accidental drops from up to 2m and harsh conditions. Also, a comfortable grip reduces fatigue during extended use - making it a must have for electricians and HVAC technicians.
Ideal for electricians, engineers, and maintenance professionals. It Compact design with a compatible magnet hanger solution (MH 1 Professional) for work in tight spaces
Equipment & Application
Ideal for electricians and HVAC technicians, the GFM 1000-15 Professional Fork Meter offers non-invasive AC current measurement, allowing you to work faster without breaking circuits. Its compact design makes it easy to use in tight spaces, such as cramped electrical panels, as well as other challenging environments. The integrated non-contact voltage detector (NCV) and flashlight enhance safety and convenience, making it a reliable choice for electrical installations, maintenance, and repairs.
Additional Information
Compatible with the Li-ion battery pack for long-lasting power, the GFM 1000-15 Professional features an inverted LCD display, True RMS for accurate readings and a hold function to easily capture readings. Compatibility with the versatile magnet hanging solution, MH 1 Professional, allows for hands-free operation, while the tool's outstanding user protection is backed by CAT IV 600 V and CAT III 1000 V ratings. High-quality measuring strips made of flexible, long-lasting silicone provide durability you can rely on, while convenient storage for measuring tips and a compact design make it easy to carry and use on any jobsite.
Technical Specification:
|
AC voltage
|
1,000 V
|
|
AC voltage resolution
|
1 V
|
|
AC voltage accuracy
|
± 1.5 % + 5
|
|
AC current
|
200 A
|
|
AC current resolution
|
0.1 A
|
|
AC current accuracy
|
± 3.0% + 3
|
|
DC voltage
|
1,000 V
|
|
DC voltage resolution
|
1 V
|
|
DC voltage accuracy
|
± 1.0 % + 2
|
|
Resistance
|
60 MΩ
|
|
Resistance resolution
|
0.01 MOhm
|
|
Resistance accuracy
|
± 2.0 % + 5
|
|
Continuity
|
Yes
|
|
Continuity resolution
|
0.1 Ohm
|
|
Continuity accuracy
|
± 1.0 % + 5
|
|
Frequency resolution
|
0.01 kHz
|
|
Frequency accuracy
|
± 0.1 % + 2
|
|
Low input impedance (LoZ)
|
1,000 V
|
|
IP-Protection
|
IP54
|
|
True RMS
|
Yes
|
|
Safety class
|
CAT IV 600 V / CAT III 1000 V
|
|
Display type
|
LCD Inverted
|
|
Non-Contact-Voltage (NCV)
|
Yes
|
|
Torch light
|
Yes
|
|
Acoustic feedback
|
Yes
|
|
Measuring range for frequency
|
10 Hz to 50 kHz
|
|
Continuity range
|
0 Ω
|
|
Cable Break Detection
|
No
|
|
Packaging dimensions (width x length x height)
|
103 x 264 x 82 mm
|
FAQ
Q1. What functions does the Bosch GFM 1000‑15 offer?
The GFM 1000‑15 is a versatile all-in-one tester that provides:
- AC current measurement up to 200 A using its open-jaw (fork) design no need to disconnect circuits.
- AC/DC voltage measurement up to 1,000 V, including low‑impedance (LoZ) mode to eliminate ghost voltages
- Resistance measurement up to 60 MΩ and continuity testing with visual and audible alerts
- Frequency measurement in the range of 10 Hz to 50
- Non‑Contact Voltage Detection (NCV) and a built-in torch/flashlight to enhance safety and usability.
Q2. How durable and safe is the GFM 1000‑15?
This tool is built for demanding jobsite environments:
- IP54-rated for resistance to dust and splashes
- Rugged enough to withstand drops from up to 2 meters co.uk
- Meets CAT IV 600 V and CAT III 1,000 V safety standards
- Incorporates True RMS measurement for accurate readings even on distorted signals
Q3. What are the display features and usability enhancements?
- Features an inverted LCD display (white on black) for enhanced contrast and readability in dim conditions
- Includes a hold function to freeze the current reading and audible feedback for confirmation
- Ergonomic grip reduces hand fatigue during extended use.
Q4. What precautions should users be aware of?
- Always use the correct rotary switch position and appropriate input ports when measuring different parameters
- Ensure test leads are in good condition—damaged leads can affect accuracy and safety
- When measuring current, position the cable within the fork, up to a maximum cable diameter of about 16 mm—cable must be positioned properly between the arrows.
- Battery compartment must be secured with screws before powering on—loose covers can pose safety hazards
- Remove batteries if the tool won't be used for extended periods to avoid corrosion or leakage.
